M939
Unofficial
names/slang: n/a
Function:
Cargo truck
Contractor:
----
Unit cost:
approx. $----

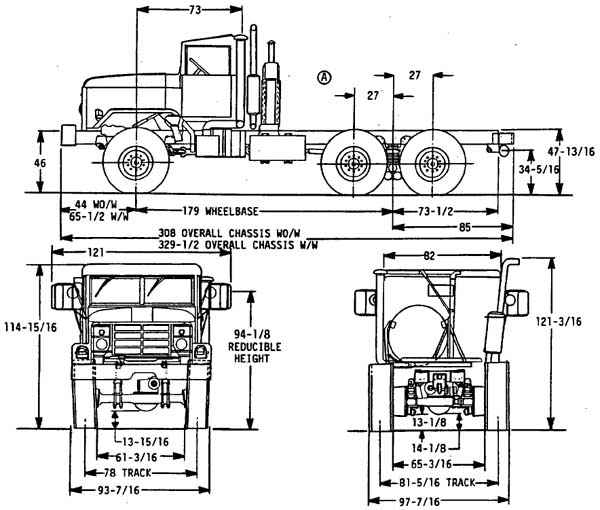

Length:
25' - 8"
Width: 7'
- 10"
Height:
9' - 7"
Speed: 63
mph (governed)
Weight
(Empty): 19,420 lbs
Payload:
12,500 lbs (including rear body structure)
Towing
Capacity: 15,000 lbs
Angle of
Approach (Loaded): 46 degrees
Angle of
Departure (Loaded): 38 degrees
Min Turning
Radius: 480 in
Fording
Depth: 80 in w/ kit, 32 in w/o kit
Ground
Clearance: -- inches
Crew: 1
Driver, 2 passengers in cab
Range:
approx. 350 mi
Engine:
In-line 855 cu.
in. 6 cylinder diesel @ 240 HP @ 2100 RPM
Armament:
none |
|
|
Description:
240-horsepower cargo truck
Features: The M-939A2 tactical truck is a
five-ton capacity, six-wheel drive cargo truck used for
transportation of all types of supplies. The M-939 series
comes in six body styles: cargo, dump, wrecker, van and long
wheel base cargo. Its central tire inflation system enables
the crew to increase or decrease the air pressure in the
tires to improve mobility on or off roads. It can tow 21,000
pounds.
Background: The M-939A2 is a fitting
replacement for the famed Army "deuce-and-a-half"
truck. The Army received the M-939A2 in 1989.
|
