There are five basic configurations of the HEMTT
series trucks: M977
cargo truck with Materiel Handling Crane, M978 2500 gallon fuel tanker,
M985 cargo truck with Materiel Handling Crane, M983 tractor and the
M984 wrecker. A self-recovery winch is also available on certain
models. This vehicle family is rapidly deployable and is designed to
operate in any climatic condition where military operations are
expected to occur. The HEMTT is the backbone of U.S. Army logistics.
Standard features include front and rear tow eyes, blackout lights,
24-volt electrical system, and rear pintle hook for towing trailers and
artillery. All models are C130, C141 and C17 air transportable and are
capable of fording water crossings up to 48 inches deep.

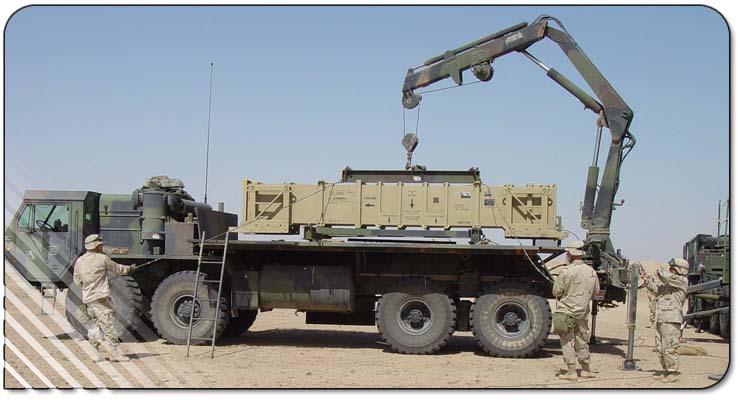

HEMTT Load Handling System (LHS) consists of a standard HEMTT
(M977/M978 or M985 chassis) prime mover (8 x 8 foot configuration)
equipped with an integral load-handing system providing
self-load/unload capability and capable of transporting an 11-ton
payload. LHS carries equipment/ammunition/supply loads on demountable
“flatrack” cargo beds and is able to tow an 11-ton
payload trailer also
capable of carrying flatracks. The containerized roll-in/out platform
(CROP), an A-frame type flatrack that fits inside a 20-foot
International Standards Organization container, gives the HEMTT LHS
added cargo carrying capability. Flatracks and CROPs are
interchangeable between HEMTT LHS and the Palletized Load System.
FMTV A1 series includes a 1999 Environmental Protection
Agency-certified engine, upgraded transmission, electronic data bus, an
anti-lock brake system and interactive electronic technical manuals.
