CLASS SPECIFIC INFORMATION
ANCHORAGE Class
Specifications
|
Overall Length
|
553'
- 0" |
Waterline Length
|
540'
- 0" |
Extreme Beam
|
84'
- 0" |
Waterline Beam
|
84'
- 0" |
Max. Navigational Draft
|
19'
- 0" |
Draft, Keel
|
Not
available |
Draft Limit
|
20'
- 0" |
Light Displacement
|
8,325
tons |
Full Displacement
|
14,095
tons |
Structural Composition
|
Hull:
Steel; Superstructure: Steel |
Number of Propellers
|
2 |
Propulsion Type
|
Steam
Turbine; (2) |
Total Shaft Horsepower
|
24,000
shp |
Speed
|
22
knots |
Crew (typ.)
|
Officers:
53; Enlisted: 771 |
|
|
WHIDBEY
ISLAND Class
Specifications
|
Overall Length
|
610'
- 0" |
Waterline Length
|
580'
- 0" |
Extreme Beam
|
84'
- 0" |
Waterline Beam
|
84'
- 0" |
Max. Navigational Draft
|
20'
- 0" |
Draft, Keel
|
Not
available |
Draft Limit
|
21'
- 0" |
Light Displacement
|
11,471
tons |
Full Displacement
|
16,360
tons |
Structural Composition
|
Hull:
Steel; Superstructure: Steel |
Number of Propellers
|
2
- Controllable Reversible Pitch (CRP) |
Propulsion Type
|
Diesel;
(4) 16 Cylinder Engines |
Total Shaft Horsepower
|
33,600
shp |
Speed
|
22
knots |
Crew (typ.)
|
Officers:
51; Enlisted: 801 |
|
|

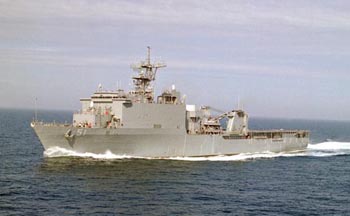

HARPER'S
FERRY Class
Specifications
|
Overall Length
|
610'
- 0" |
Waterline Length
|
580'
- 0" |
Extreme Beam
|
84'
- 0" |
Waterline Beam
|
84'
- 0" |
Max. Navigational Draft
|
20'
- 0" |
Draft, Keel
|
Not
available |
Draft Limit
|
21'
- 0" |
Light Displacement
|
11,604
tons |
Full Displacement
|
16,601
tons |
Structural Composition
|
Hull:
Steel; Superstructure: Steel |
Number of Propellers
|
2 |
Propulsion Type
|
Diesel;
(4) 16 Cylinder Engines |
Total Shaft Horsepower
|
33,000
shp |
Speed
|
20+
knots |
Crew (typ.)
|
Officers:
49; Enlisted: 800 |
|
|
|
